Torsional vibrations under control

    Voith highly flexible couplings shift resonance frequencies in a driveline below idle speed. They also dampen critical torsional vibration amplitudes and shock loads.

    Manufacturers and operators have big expectations regarding the productivity of their vehicles and systems: high reliability and short downtimes together with a low total cost of ownership.

    Highly flexible couplings from Voith are specially developed for these requirements. They protect the driveline and thus extend the lifetime and availability of all connected drive components. In this way, they increase the productivity of the vehicle or system.

    More than 45 years of experience in perfecting drive systems that are subject to torsional vibrations are the foundation on which the relationship with our customers is built.

    Customer benefits

    • Increased availability of all components in the driveline
      due to damping of torsional vibrations and shock loads in the driveline
    • Decreased life cycle costs
      due to increased lifetime of all driveline components
    • Increased comfort
      due to less vibration and noise

    Our product portfolio

      Our products improve the availability of all drive components and thus reduce life cycle costs for the system. The transmitted torques range up to 1300 kNm.

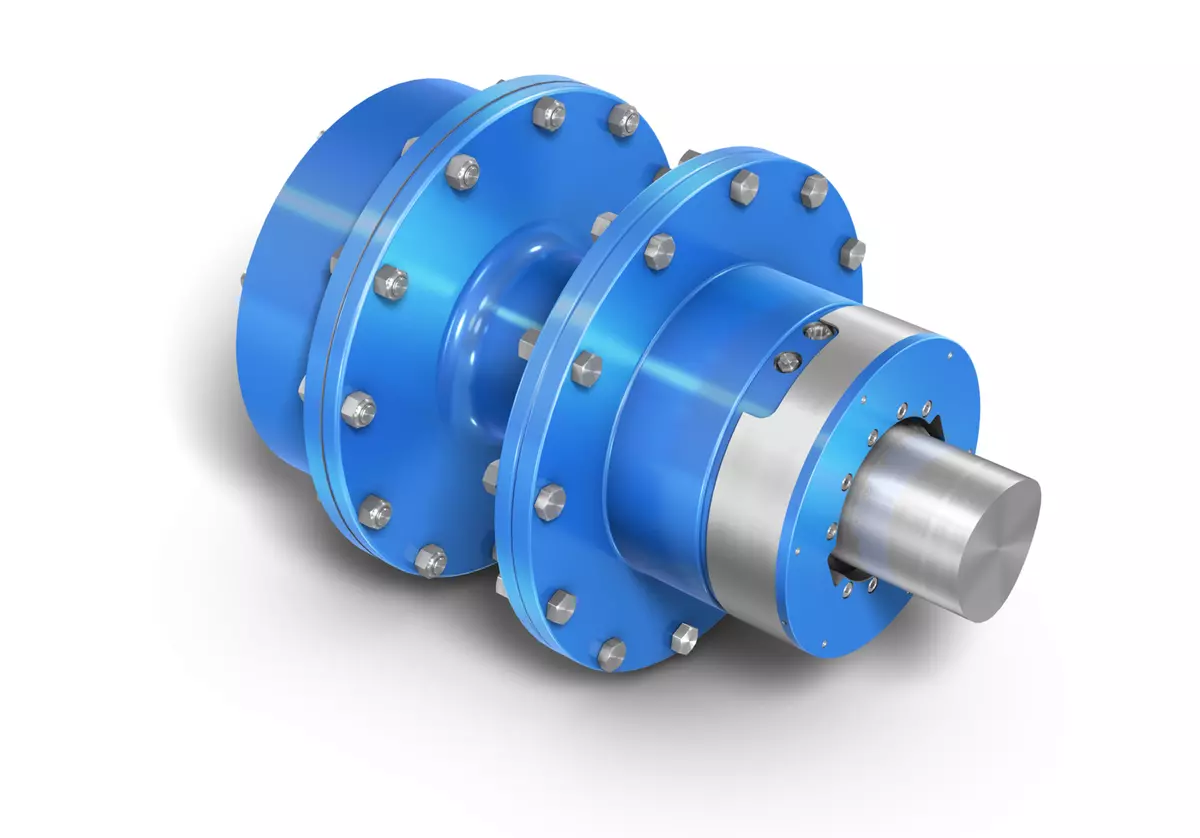

      <p>Profile of a K coupling</p>

      K Coupling

      K Couplings are the standard for our highly flexible couplings. They feature a modular design and can be integrated into your drive system with a high degree of flexibility. This makes this type of coupling an ideal and cost-effective choice for many applications in a wide range of industrial sectors.

      K Couplings dampen torsional vibrations and shift the natural frequency of the system below idle speed. In addition, K Couplings balance axial, radial, and angular displacements. The operational stability and service life of your machine or your vehicle are increased, which in turn increases availability and reduces life cycle costs.

      Outrigger-bearing models and models with torsional limiting device are optional.

      Typical applications: rail vehicles, construction vehicles, engine test rigs, natural gas compressor stations, general industry

      Technical data

      Torque up to 1,300 kNm
      Speed up to 13,000 rpm
      Mounting options
      • Cardan shaft mounting
      • Separate mounting
      • Bell-house mounting
      Elastomer types
      • Natural rubber (NR): 45 ShA, 50 ShA, 60 ShA, 70 ShA
      • Silicone: 50 ShA
      • Electrically insulating: 55 ShA
      Ambient temperatures
      • Natural rubber (NR): -40 up to +90°C
      • Silicone: -40 up to +120°C
      • Electrically insulating: -40 up to +90°C
      Optional
      • Radially removable
      • Torsional limiting device
      • Outrigger-bearing design (in cases where the engine crank shaft is not able to bear the weight of the cardan shaft and the coupling)



      Advantages and benefits

      • Resonance speeds are shifted into non-critical speed ranges. The system runs quieter, increasing comfort when operating the machine or vehicle.
      • Elastomer elements dampen torsional vibration peaks that occur in the driveline. Thanks to their elasticity, these elements reduce the stresses on the driveline caused by internal combustion engines or load-side units with their natural fluc­tuations in torque. Your machine or vehicle runs with a high degree of operational durability. And that increases productivity.
      • The coupling takes the load off all of the drive components, increasing their service life and reducing maintenance costs. The net result is a positive impact on the total cost of ownership for your machine or vehicle – not to mention preventing consequential expenses arising from downtime.
      • Its modularity makes this coupling extremely flexible with respect to function and design. You get a coupling that is precisely matched to your driveline's technical and design requirements. Standardized components ensure an optimal cost/benefit ratio.
      • The K Coupling features a high torque capacity. You save installation space while at the same time transferring high torque safely and reliably.

      Publications

      <p>Profile of an H coupling for construction vehicles</p>

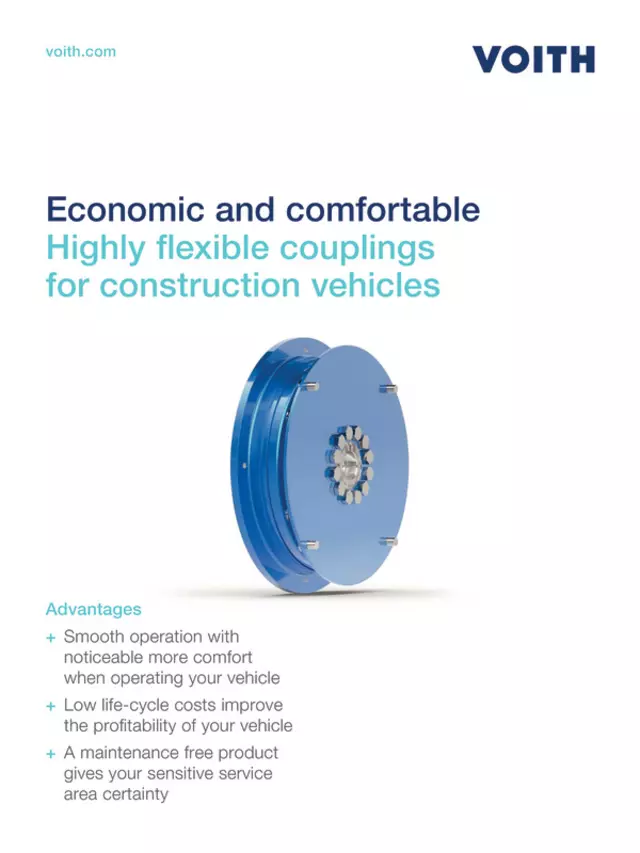

      H Coupling

      Highly flexible H Couplings are especially well suited for construction machines with a torque converter gearbox with lock-up-clutch, as well as drivelines with a pump splitter gearbox. These couplings feature a spring-mass system and a viscous-hydraulic damping system. They are very compact, temperature-resistant, and highly versatile.

      H Couplings dampen torsional vibrations and shock loads in the driveline. The operational stability and service life of your vehicle is increased, which in turn increases the availability and reduces the total cost of ownership.

      Typical applications: construction vehicles

      Technical data

      Torque up to 3.7 kNm
      Speed up to 2,500 rpm
      Mounting options
      • Bell-house mounting
      Spring stiffness
      • adjustable
      Ambient temperature
      • -40°C up to +110°C



      Advantages and benefits

      • The viscous-hydraulic damping system operates using a temperature-resistant damping grease. The damping effect increases proportionally to the coupling's angle of twist. This means that severe torsional vibrations, such as those which occur when turning a motor on and off or during load surges, also lead to a greater damping effect. This gives the coupling optimal damping behavior across the entire nominal speed range.
      • During operating condition the isolation system of the H Coupling becomes active: within the defined backlash range of the damping ring, vibrations are absorbed and isolated. As a resulted, optimum vibration isolation is ensured even in the lower operating speed range.
      • Resonance speeds are shifted into non-critical speed ranges. The system runs quieter, increasing comfort when operating the equipment or vehicle.
      • Radially arranged steel compression springs transfer the torque from the motor to the driven machine. The springs operate virtually wear-free and the coupling features very long uptimes. This keeps your service and maintenance costs low.
      • The damping effect of the coupling remains constant over a very wide range of temperatures. Wide fluctuations in temperature have almost no effect on the operation of the coupling, which means your system or vehicle operates more safely even under extreme environmental conditions.

      Publications

      <p>Profile of a D coupling for engine test rigs</p>

      D Coupling

      Highly flexible D Couplings are the standard for engine test rigs for testing 1 to 3-cylinder internal combustion engines. D couplings feature a high torsional flexibility and high torque capacity. Development test rigs, continuous-running test rigs, and end-of-line test rigs operate safely and reliably with this coupling at speeds of up to 10,000 rpm.

      D Couplings shift a system's critical resonance frequencies below idle speed. In addition, the couplings dampen undesirable alternating torques. This increases the service life of all the test rig drive components. Your test rig operates with a high level of availability.

      The D Coupling's modular design enables very flexible integration into a wide variety of engine test rigs. We adapt the length of the coupling, connections, and torsional rigidity to your test rig.

      Typical applications: engine test rigs

      Technical data

      Torque up to 2,560 Nm
      Speed up to 10,000 rpm
      Mounting options
      • Cardan shaft mounting
      Elastomer types
      • Natural rubber (NR): 45 ShA, 50 ShA, 60 ShA
      Ambient temperature
      • -40°C up to +90°C



      Advantages and benefits

      • D Couplings feature high torsional flexibility. This makes it possible to reproduce test cycles more precisely in supercritical operation and to achieve particularly precise test results.
      • A built-in spherical joint ensures balance between the engine and the power take-off. This test rig coupling is suited for engine speeds of up to 10 000 rpm. High-speed engines can be tested up to their maximum speed in most cases.
      • The coupling's modular design makes it easy to integrate into a wide variety of engine test rigs. The connections can be adapted to almost all types of engines and dynos. This saves on adaptation expenses and allows you to build a better design with a shorter lever arm.
      • All connected components are relieved when moving through the resonance speed (engine start) and in other speed ranges. This extends the service life of all the test rig driveline components. Higher availability and lower total cost of ownership for your system increase your profits.

      Publications

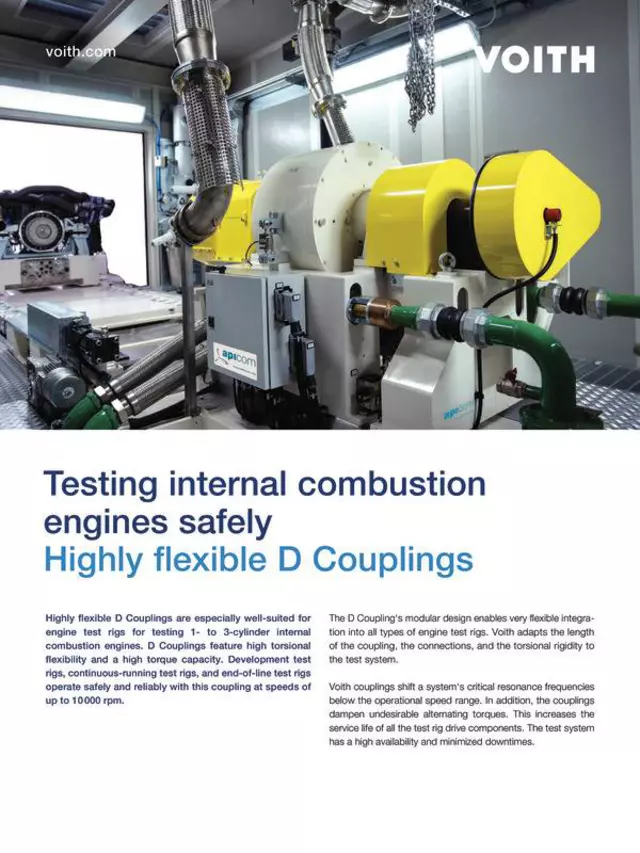

      • Testing internal combustion engines safely | Highly flexible D Couplings

        Testing internal combustion engines safely | Highly flexible D Couplings

        PDF
        English German

      <p>Profile of a CT coupling for industrial uses</p>

      CT Coupling

      Flexible CT Couplings are especially well suited for industrial uses. This type of coupling is virtually failure-free and is an optimal and cost-effective solution for many applications. Elastomer elements under pressure provide a damping effect.

      CT Couplings dampen torsional vibrations and shock loads in the driveline. In addition, the coupling balances axial and radial displacements. This increases the operational stability and service life of your equipment or system, which in turn increases the vailability and reduces the total cost of ownership.

      Models with plug-in connection for bell-house installation are optional.

      Typical applications: generator sets, crusher, mills, shredders, general industry

      Technical data

      Torque up to 130 kNm
      Speed up to 2,650 rpm
      Mounting options
      • Separate mounting
      • Bell-house mounting
      Elastomer types
      • Natural rubber (NR): 60 ShA, 70 ShA, 80 ShA
      • Silicone: 70 ShA
      Ambient temperatures
      • Natural rubber (NR): -40 up to +90°C
      • Silicone: -40 up to +130°C



      Advantages and benefits

      • The coupling works without creating backlash forces to the system. This increases safety and the availability of all connected components. The net result is a positive impact on the total cost of ownership for your equipment or system – not to mention reducing downtimes and associated costs.
      • The CT Coupling design makes it virtually failure-free. In the highly unlikely event of damage of the elastomer elements, the coupling will continue to transmit torque. Only the coupling's damping characteristics are affected. You have the option of emergency operation of your equipment or system. This prevents sudden stoppages.
      • Resonance frequencies are shifted into non-critical speed ranges. The system runs quieter, increasing comfort when operating the equipment or system.
      • The coupling is virtually maintenance-free and requires no lubrication. The elastomer elements are the only parts subject to natural wear. Replacing the elements is very simple since the coupling consists of only three main components. This helps reduce downtimes and associated costs. Lower main­tenance costs optimize your life cycle costs.

      Publications

      • Transmitting maximum torques safely | Flexible CT-P Coupling

        Transmitting maximum torques safely | Flexible CT-P Coupling

        PDF
        English German

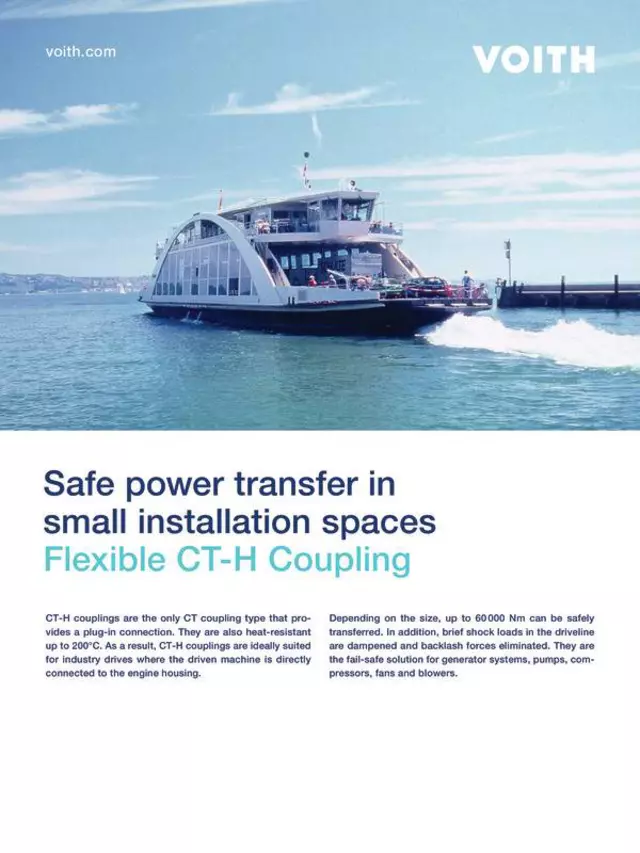

      • Safe power transfer in small installation spaces | CT-H Coupling for Power Generation

        Safe power transfer in small installation spaces | CT-H Coupling for Power Generation

        PDF
        English German

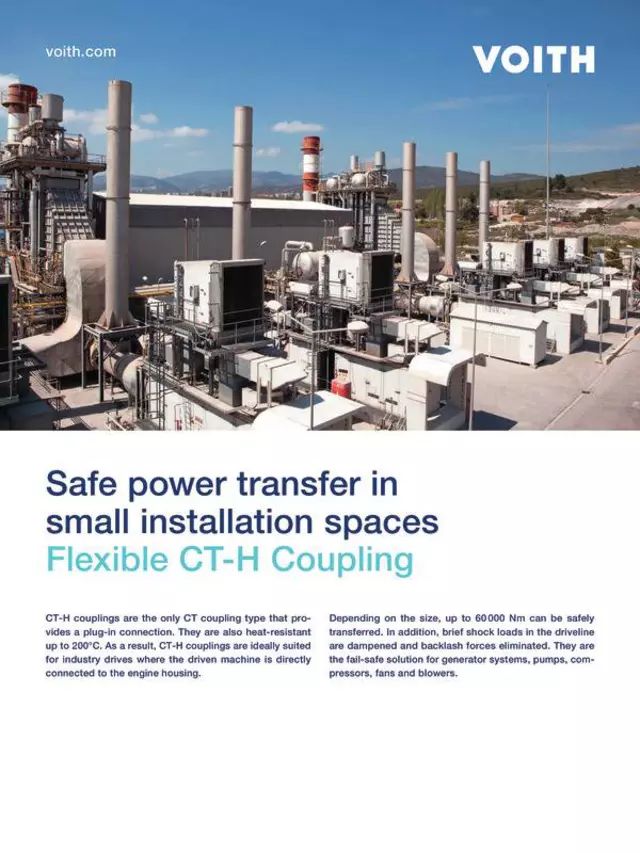

      • Safe power transfer in small installation spaces | CT-H Coupling for Marine

        Safe power transfer in small installation spaces | CT-H Coupling for Marine

        PDF
        English German

      Find the right product for your generator set in a few simple steps

        Flexible CT-H couplings transfer power safely and are ideally suited for generator sets where space is limited and the generator is connected directly to the engine housing.

        Flexible CT-H couplings transfer power safely

        Your configuration

        Mandatory fields

        Driving Unit



        kW



        rpm
        Nm

        Generator





        In order for you to utilize the CT Coupling Selection Guide, please fill in the contact data required below.

        Reload security code
        Please enter the security code.

        Voith Service – how can we help you?

          Why use Voith Service?
          Why use Voith Service?

          • Everything from a single source: development, design, production – and service!
          • Decades of product experience as an original equipment manufacturer and service provider
          • Fast and smooth cooperation and best service thanks to a worldwide network of service locations
          • Long-term partnership and planning security are guaranteed due to longstanding corporate stability

          To our entire service portfolio Voith Turbo Webshop

          The right solution for every application

            Rail vehicle TEM 9H SinaraHybrid

            Rail vehicles

            • Diesel locomotives
            • DMU / Railcars
            • Special vehicles / Rail construction vehicles
            Wheel loader in a construction site

            Construction equipment

            • Wheel loaders
            • Rigid & articulated dump trucks
            • Underground mining vehicles
            • Motorgrader
            • Fire trucks
            • Tow tractors
            • Reach stacker
            • Mobile cranes
            Test rig

            Test rigs

            • Development test rigs
            • End-of-line engine test rigs
            • Brake test rigs
            Combustion power generator

            Combustion power generation

            • Generator sets with a diesel / Gas combustion engine
            Oil and gas plant

            Oil & gas industry

            • Reciprocating compressor sets
            • Pump sets
            Shredder with Voith Turbo drive technology

            Crusher, Mills and Shredders

            • Stationary crushers
            • Stationary mills
            • Stationary shredders
            Edda Fram

            Marine

            • Containerships
            • Tugboats
            • Pleasure boats / Yachts
            • LNG carriers
            • Cruise ships
            • Offshore supply vessels

            Technical information

              The individual components of a driveline are made of elastic materials (e.g., steel) and have a mass. Accordingly, they represent a system susceptible to torsional vibration. If this system is incited, it will start vibrating with a determined frequency – its natural frequency and amplitude.

              If a highly flexible coupling is installed, the vibration amplitude will become a finite value. A reciprocating diesel engine does not convey its power evenly over one rotation of the crankshaft. That is why a diesel engine puts a heavy load on the drive train.

              This is amplified by the new injection technologies with very high injection pressures, which have been introduced in the recent years. Additionally, there is a trend toward downsizing of engines, which means fewer cylinders, lighter mass inertia and even higher injection pressure.

              A driveline will normally consist of:

              • The driving machine (prime mover)
              • Coupling elements (couplings, gears, etc.)
              • The driven machine (power consumer)

              A useful operational strength and unit lifetime is often achieved only after a highly flexible coupling has been installed in the driveline.

              All drivelines can be divided into one of the three methods of installation:

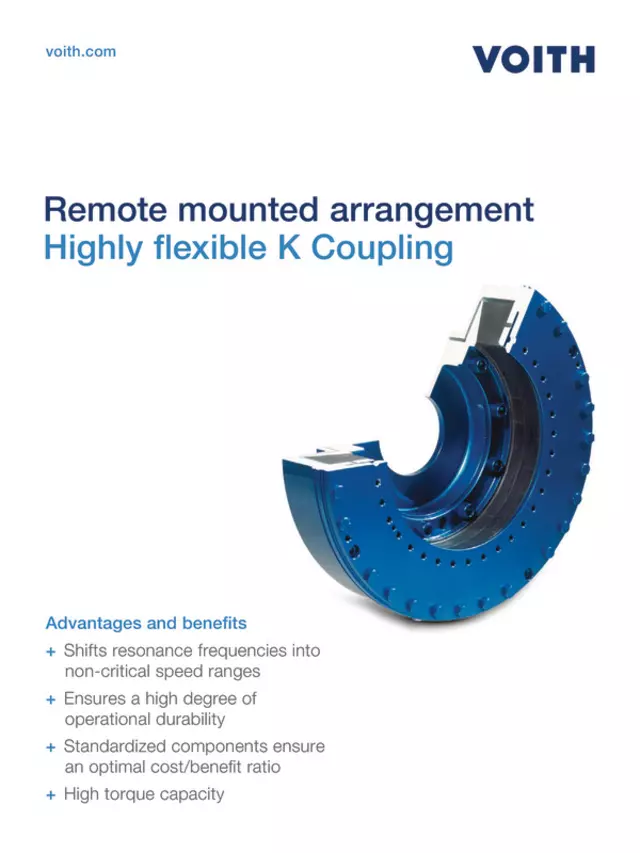

              Technical drawing of a remote-mounted arrangement driveline

              Remote-mounted arrangement

              • Driver and driven machines are installed on different foundations and located relatively distant from each other.
              • The bearing that guides the joint shaft is integrated into the coupling design.
              • The weight of the joint shaft and coupling is transmitted to the rear crankshaft bearing.
              • Depending on the coupling series, friction or antifriction bearings are used.
              • The friction bearings follow any relative twist of the coupling performing an oscillating rotary movement. This increases the damping factor of the coupling.

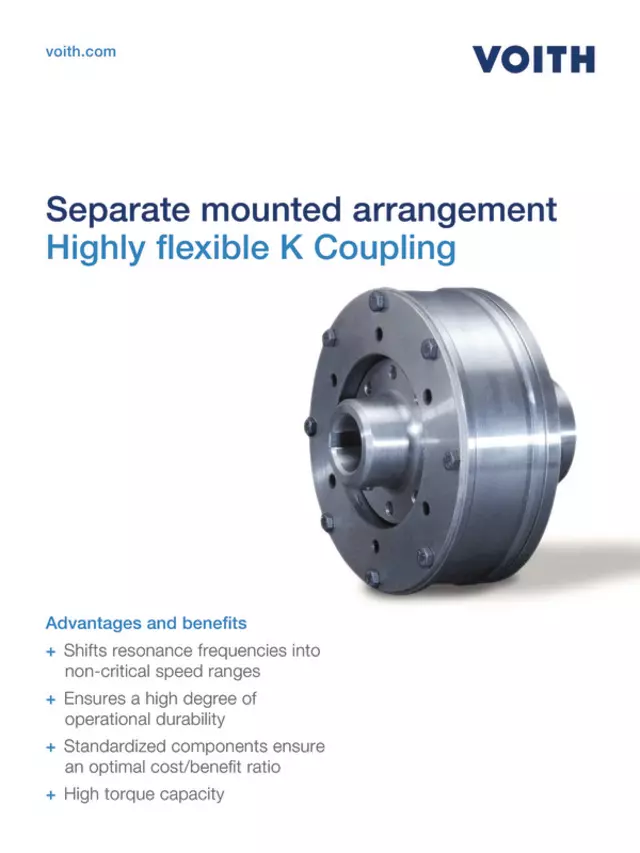

              Technical drawing of a separate-mounted arrangement driveline

              Separate-mounted arrangement

              • Driver and driven machines are installed on different foundations and located relatively close to each other.
              • Driver and driven machines have elastic supports and can therefore vibrate in the axial, radial and angular direction relative to one another.
              • The coupling compensates for these movements by having universal flexibility in axial, radial and angular direction.

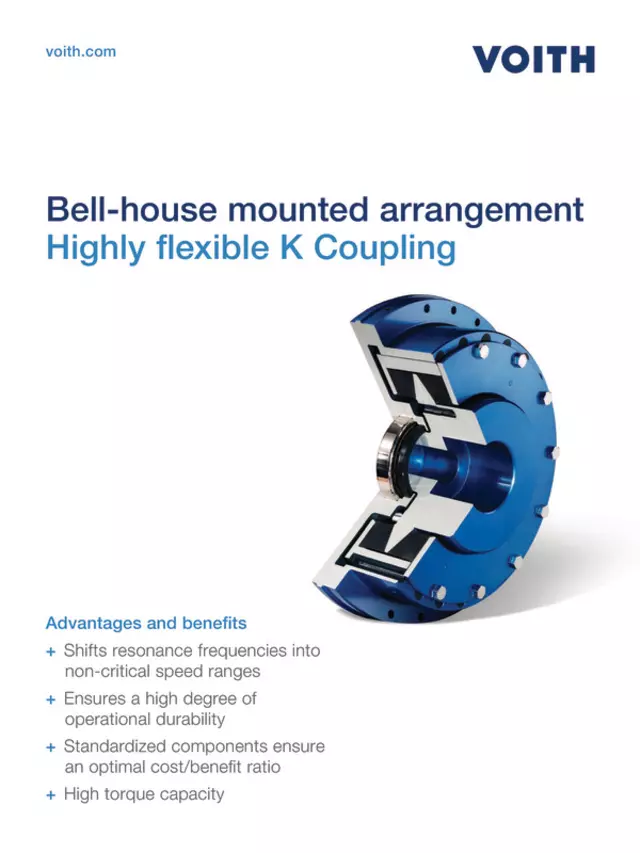

              Technical drawing of a bell-house-mounted arrangement driveline

              Bell-house-mounted arrangement

              • The driven machine is directly flanged onto the engine flywheel housing.
              • The highly flexible coupling is designed as a blind assembly unit since it needs to be mounted at the same time as the driver and driven machine are bolted together.

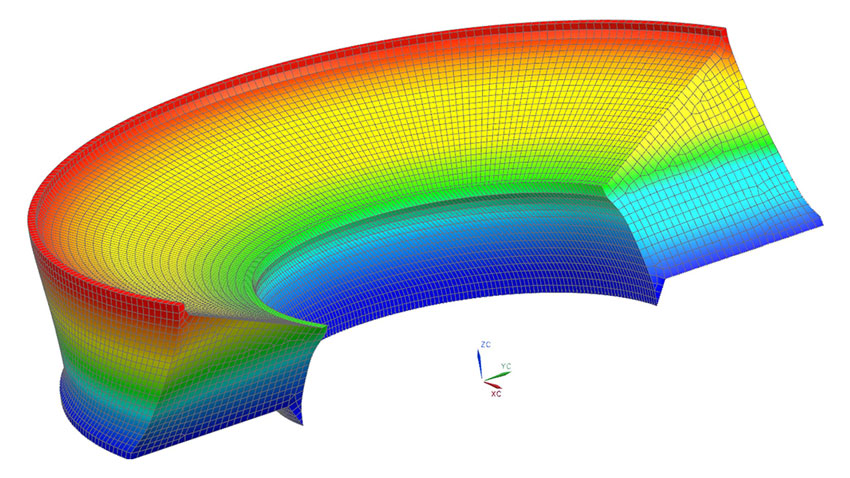

              Engineering services

                Engineering service

                We supply not only products, but ideas too. Benefit from our many years of experience in all aspects of driveline project planning:

                • Conceptual design of the driveline
                • Torsional vibration calculation (TVC)
                • Torsional vibration measurement (TVM)
                • Fatigue analysis (FA)

                Publications

                  • Protecting gensets in the long-term

                    Protecting gensets in the long-term

                    PDF
                    English
                  • Raising the productivity of your compressor drive

                    Raising the productivity of your compressor drive

                    PDF
