Shaft hoisting solutions for reliable and safe product transport

    Our tailor-made systems for shaft hoisting and customized solutions for mining conveyor technology are reliable, providing greater efficiency through optimized speed control and maximum safety standards. Discover our range of tailor-made Voith shaft hoisting systems, ensuring reliable and safe product transport and material transport from underground to above ground or vice versa.

    Contact our experts
    Voith has repeatedly proven that its systems deliver the highest reliability, even under extreme conditions.
    Dr. Oleg Kaledin, Project Director, Thyssen Schachtbau, Germany

    Our product portfolio

      TurboHoist Hopper Discharger
      Controlled withdrawal for smooth material transport
      TurboHoist Skip Charger
      Reliable loading of the skip
      TurboHoist Retractable Guide Rail
      Efficient and safe guidance of conveyor cages
      TurboHoist Decking Devices
      Optimized and automated mine car handling

      <p>Voith | TurboHoist Decking Devices</p>

      TurboHoist Decking Devices

      Process-optimized loading of mine cars for safe operation

      Rail-guided mine car systems are a safe and space-efficient transportation method in underground mining operations. Mine cars transport products as well as materials in the shaft. High safety standards prevail in mine car operation thanks to guided and pre-defined movements of the mine cars with Voith TurboHoist Decking Devices.

      Our products allow precise and reliable wagon movement in the shaft area and onto and off the hoist.

      Benefits and uses

      • Fast loading and unloading of the cage using a double-sided inset
      • Reduction of excavation costs using the switchback inset
      • The switchback inset handles mine cars on two rails on one side of the shaft, saving space and material costs
      • Safe passage for mine personnel onto and off the hoist
      • Turn-key solutions and customized design
      • On-site service and spare-part supply

      Typical applications

      • Underground mining
      • Shaft hoisting

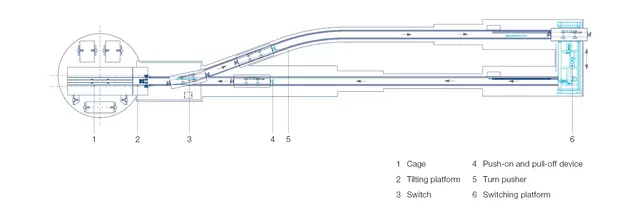

      Voith | TurboHoist components of switchback inset with mine car circuit
      Key components of switchback inset with mine car circuit

      <p>Voith | TurboHoist Retractable Guide Rail</p>

      TurboHoist Retractable Guide Rail

      Ensuring cost-effective and safe shaft transport

      The Voith TurboHoist Retractable Guide Rail was developed explicitly for guiding conveyor cages in mine shafts in a reliable, efficient, and safe manner. In mines with several floor levels, it enables a fast thoroughfare of the conveyor cage along the floor level. The unique Voith solution also significantly increases safety as there is no need to switch to a different guiding system in the floor area. Our technology allows the loading and unloading the conveyor cage across the entire opening. This way, our technology helps you increase capacity significantly.

      Benefits and uses

      • 4% - 5% higher conveying efficiency per floor level, thanks to higher speeds
      • Greater safety with continuous guidance, with no interruptions
      • Replaces standard slow-speed corner guiding

      Typical applications

      • Shaft hoisting in underground mining

      Voith | TurboHoist Retractable Guide Rails

      <p>Voith | TurboHoist Skip Charger</p>

      TurboHoist Skip Charger

      Quick and accurate skip loading

      In underground mining, products can be transported vertically to the surface via a shaft, using a skip. The Voith TurboHoist Skip Charger is used for the controlled, precise, reliable, and quick skip-loading features. Our technology and expertise involve planning, designing, and producing the entire system – from the hopper to the weighing conveyor with the transfer chute, gap reconciliation, and, ultimately, material transfer into the skip.



      Benefits and uses

      • Optimally matched to the mining environment
      • Increased productivity, as all processes are perfectly coordinated
      • Minimized operating costs by avoiding system shutdowns and startups
      • Planning, engineering and manufacturing of complete systems from hopper to skip

      Typical applications

      • Decking in underground mining

      Operating principle – Interaction of skip charger key components

      Voith | Skip charger operating principle

      <p>Voith | TurboHoist Hopper Discharger</p>

      TurboHoist Hopper Discharger

      High availability and smooth material transport

      Used to store coal and other bulk materials, the Voith TurboHoist Hopper Discharger permits controlled material extraction from the hopper to the subsequent means of transport; more importantly, our hoppers are known for their reliability and long product lifetimes. Proper planning and sizing of the hopper and its discharger to reflect the flow behavior of the bulk material is essential for trouble-free operation. Based on our extensive experience in mining, we individually design hoppers and hopper dischargers that are ideally matched to the conveyor environment. This customized approach ensures smooth material transport and high productivity for your system.

      Benefits and uses

      • Smooth material transport
      • Controlled material withdrawal
      • Optimum matching to the flow behavior of the material
      • High availability due to long lifetime

      Typical applications

      • Both underground and open-cast mining and other industries

      Voith Service – how can we help you?

        Why use Voith Service?
        Why use Voith Service?

        • Everything from a single source: development, design, production – and service!
        • Decades of product experience as an original equipment manufacturer and service provider
        • Fast and smooth cooperation and best service thanks to a worldwide network of service locations
        • Long-term partnership and planning security are guaranteed due to longstanding corporate stability

        To our entire service portfolio Voith Turbo Webshop

        Publications

          • Key components for shaft hoisting | TurboHoist portfolio
